Hệ thống ray cấp điện VAHLE U10

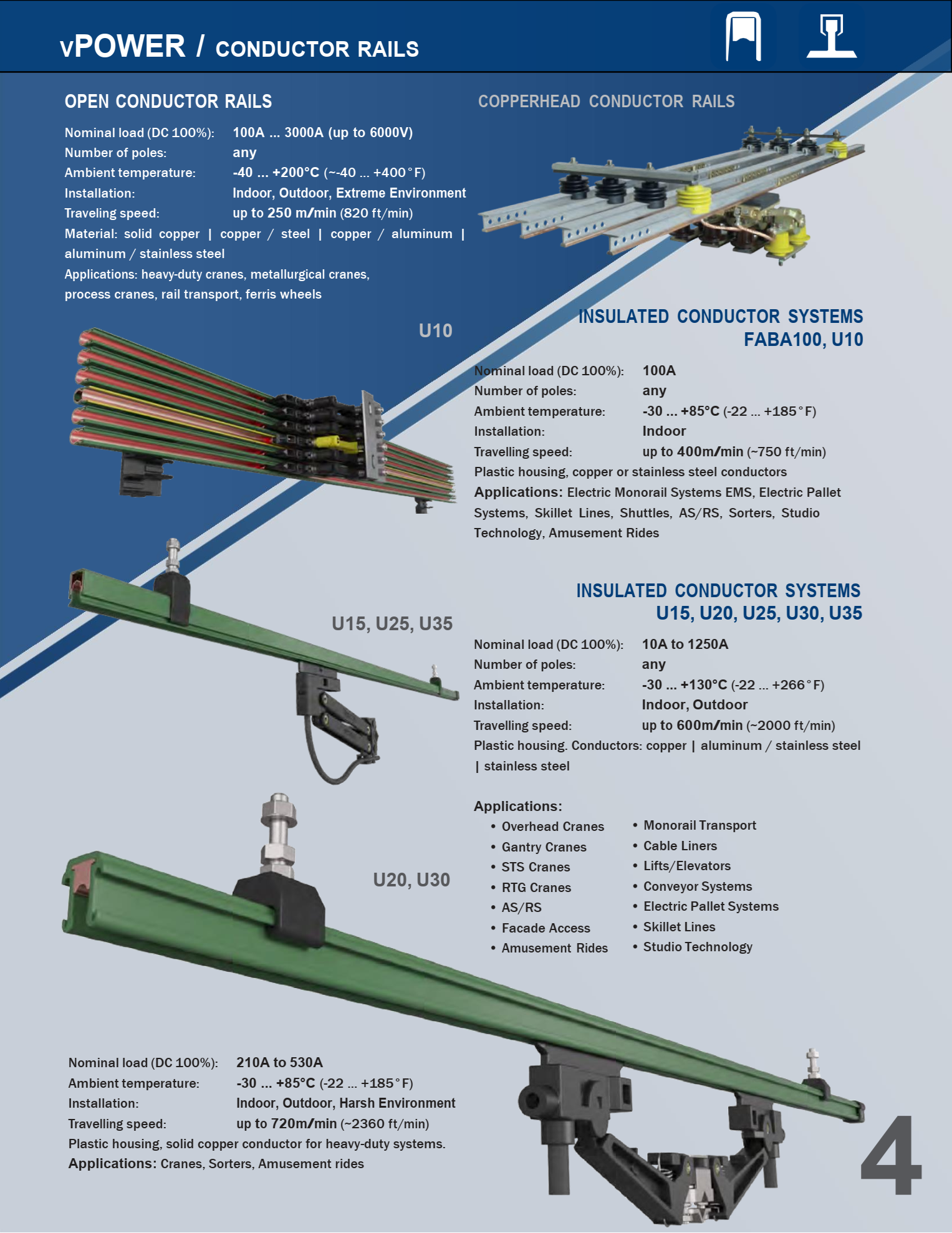

VPOWER / CONDUCTOR RAILS OPEN CONDUCTOR RAILS Nominal load (DC 100%): 100A ... 3000A (up to 6000V) Number of poles: any Ambient temperature: -40 ... +200°C (~-40 ... +400°F) Installation: Indoor, Outdoor, Extreme Environment Traveling speed: up to 250 m/min (820 ft/min) Material: solid copper | copper / steel | copper / aluminum | aluminum / stainless steel Applications: heavy-duty cranes, metallurgical cranes, process cranes, rail transport, ferris wheels

INSULATED CONDUCTOR SYSTEMS FABA100, U10



Nominal load (DC 100%): Number of poles: Ambient temperature: Installation: Travelling speed: 100Aany-30 ... +85°C (-22 ... +185°F) Indoorup to 400m/min (~750 ft/min)

Plastic housing, copper or stainless steel conductors Applications: Electric Monorail Systems EMS, Electric Pallet Systems, Skillet Lines, Shuttles, AS/RS, Sorters, Studio Technology, Amusement Rides

INSULATED CONDUCTOR SYSTEMS U15, U20, U25, U30, U35



Nominal load (DC 100%): Number of poles: Ambient temperature: Installation: Travelling speed: 10A to 1250Aany-30 ... +130°C (-22 ... +266°F) Indoor, Outdoorup to 600m/min (~2000 ft/min)

Plastic housing. Conductors: copper | aluminum / stainless steel | stainless steel



U20, U30



Applications:



• Overhead Cranes



• Gantry Cranes



• STS Cranes



• RTG Cranes



• AS/RS



• Facade Access



• Amusement Rides



• Monorail Transport



• Cable Liners



• Lifts/Elevators



• Conveyor Systems



• Electric Pallet Systems



• Skillet Lines



• Studio Technology
